Cryogenic Systems
Operational Protocol

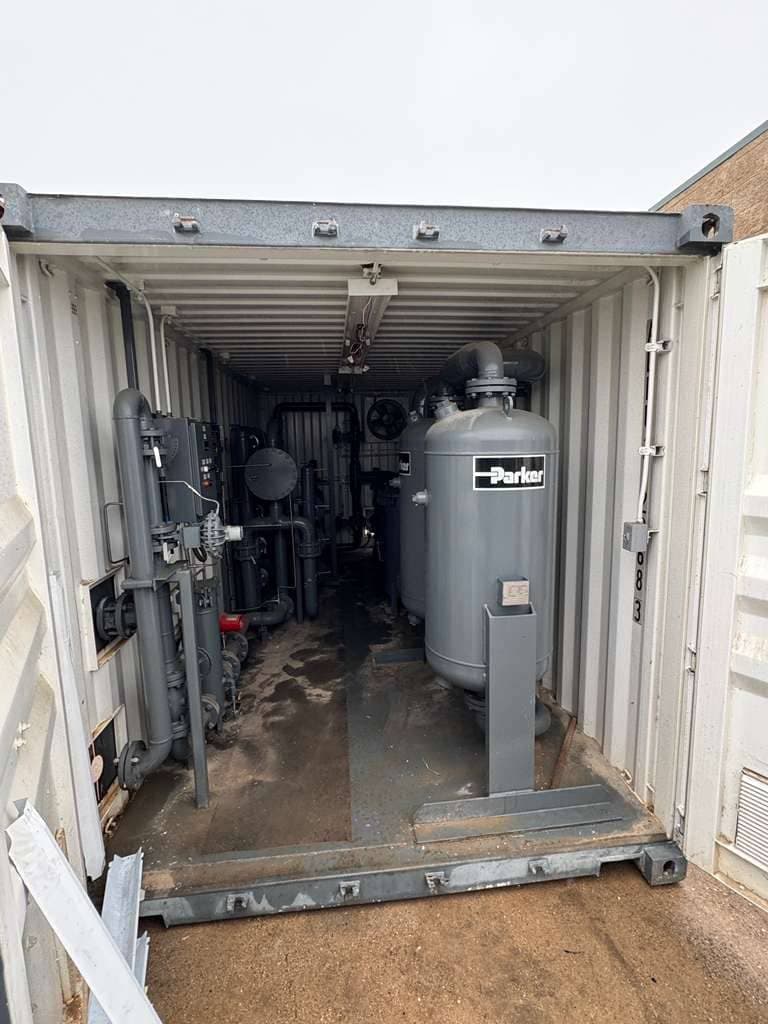

Removal
Process
VJP Vacuum Monitoring
Before any mechanical work begins, the vacuum level in every Vacuum Jacketed Piping (VJP) system's annular space is measured using existing vacuum transducers or pump-out/relief port nozzles. The annular space is typically maintained at 9 microns or less — any deviation signals a compromised system requiring immediate assessment.
Dry Inert Gas Backfill
The vacuum is broken using a strictly controlled purge of dry, oil-free inert gas — typically high-purity nitrogen. Ambient air is never used to break the vacuum. Because the inner carrier pipe remains at cryogenic temperatures, introducing ambient air would cause immediate condensation and freezing of atmospheric moisture, destroying the multi-layer super-insulation and creating unsafe conditions for the dismantling crew.
Sequential VJP Disconnection
Once the vacuum is neutralized and the annular space is normalized to atmospheric pressure, VJP sections are mechanically separated at the weld sockets or outer couplings in a pre-planned sequence. This sequential approach prevents cascade failures in interconnected systems.
CO₂ Dry-Ice Hazard Protocol
Liquid CO₂ venting requires specialized management. Rapid depressurization causes auto-refrigeration, flashing the liquid into solid dry ice at -78°C inside piping and vent stacks. If liquid CO₂ becomes trapped behind a solid plug, ambient warming creates immense pressure buildup and potential vessel rupture. Venting procedures maintain pressure above the CO₂ triple point, and vaporizers are used to heat the liquid before venting.
Argon & Nitrogen Expansion Venting
One liter of liquid nitrogen expands to nearly 700 liters of gas at room temperature. Venting must follow strict atmospheric dispersion models per EIGA Doc 154 (Safe Location of Gas Vents). Vent stacks are never interconnected across gas systems — cross-contamination of an incompatible gas could freeze inside a vent line, blocking emergency pressure relief paths.
Multi-Gas Site Monitoring
Decommissioning facilities housing multiple gas types requires simultaneous monitoring for both oxygen-deficient (asphyxiation) and oxygen-enriched (fire hazard) atmospheric conditions. Dedicated sensor arrays covering nitrogen, argon, CO₂, and oxygen zones are active continuously throughout operations.
Regulatory Matrix
Safety &
Compliance
NFPA 55
Multi-Gas Storage Code
The Standard for the Storage, Use, and Handling of Compressed Gases and Cryogenic Fluids governs protection protocols against physiological, over-pressurization, explosive, and flammability hazards across all multi-gas cryogenic systems.
CGA P-1
Safe Handling Guidelines
The Compressed Gas Association's CGA P-1 provides the mandatory guidelines for safe purging, handling, and isolation of all cryogenic gas systems encountered on multi-gas sites.
EIGA Doc 154
Vent Dispersion Models
All gas venting operations follow the European Industrial Gases Association Doc 154 dispersion modeling guidelines to prevent the creation of localized oxygen-deficient asphyxiation zones adjacent to vent discharge points.
VJP Vacuum Protocol
Super-Insulation Preservation
Multi-layer super insulation in the VJP annular space operates at 9 microns vacuum or less. Improper vacuum breaking — particularly with ambient air — instantly destroys the insulation by freezing atmospheric moisture against the inner cryogenic pipe.
PPE Requirement — Multi-Gas Operations
Field technicians in cryogenic zones must wear loose-fitting heavy leather insulating gloves, full face shields over safety glasses, and footwear specifically designed to prevent cryogenic liquids from becoming trapped against the skin. Tight-fitting gloves are prohibited — they can trap liquid and cause severe cryogenic burns upon warmer surfaces.
Our Capability
Multi-Gas
Expertise
VJP Vacuum Breaking Expertise
Our crews execute the critical procedure of breaking deep vacuum on jacketed piping systems safely — using only dry inert nitrogen, never ambient air — preventing super-insulation destruction and moisture freeze-in.
CO₂ Triple-Point Management
Liquid CO₂ decommissioning requires maintaining pressure above the triple point throughout venting. Our procedures prevent the catastrophic dry-ice plug formation that can lead to trapped pressure and vessel rupture.
Simultaneous O₂ Hazard Monitoring
Multi-gas sites require monitoring for both oxygen deficiency and oxygen enrichment simultaneously. Our sensor arrays cover all elevation zones and are actively managed throughout the full scope of work.
Common Questions
FAQ
Vacuum-jacketed tanks require careful breach of the annular vacuum space before any cutting or lifting operations. We use controlled vacuum release procedures to prevent sudden implosion of the inner vessel. Once the vacuum is safely neutralized, conventional rigging and cutting methods can be applied.
Cryogenic tanks with intact vacuum jackets store significant potential energy. If the outer shell is breached without first releasing the vacuum, the atmospheric pressure differential can cause violent collapse of the inner vessel. Our technicians are specifically trained in vacuum-release protocols that eliminate this hazard before any structural work begins.
When cryogenic CO2 systems are vented, the rapid pressure drop causes CO2 to solidify into dry ice, which can block vent lines and create dangerous pressure buildups. Our procedures include heated venting pathways and staged pressure reduction to prevent dry-ice formation. We also monitor for CO2 accumulation in low-lying work areas since it displaces breathable air.
One volume of liquid cryogen expands to approximately 700 volumes of gas at ambient temperature. This means even a small residual quantity of liquid in a tank can generate an enormous volume of gas capable of displacing oxygen in enclosed spaces. Understanding this ratio drives every aspect of our ventilation, monitoring, and personnel safety planning.
Yes, if the tank passes a thorough inspection and is within its certification period, relocation is often a viable and cost-effective option. We handle the complete logistics chain including depressurization, road preparation, DOT-compliant transport, and reinstallation at the new site. Relocation can save 40 to 60 percent compared to purchasing new equipment.
