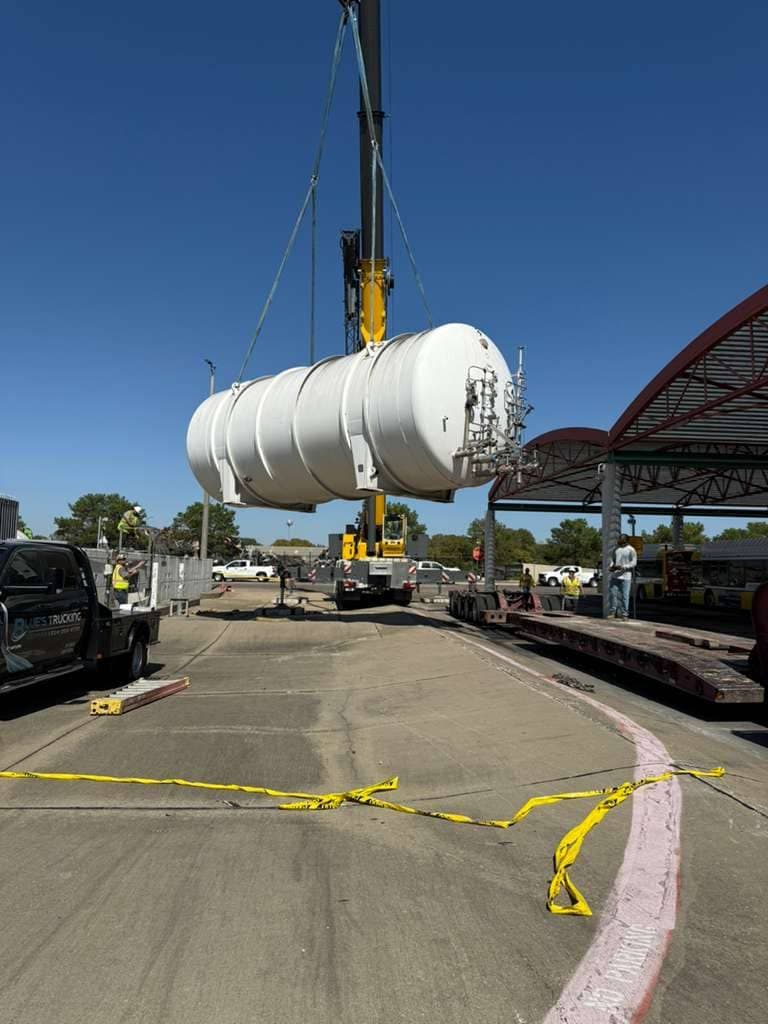

Compressor Skid Removal
Project Brief
Project
Details
Scope
Compressor Station Skid Extraction
Location
Natural Gas Compression Facility
Equipment Type
40-Ton Compression Station Skid
Key Challenge
Confined-site crane positioning with minimal outrigger spread
Field Documentation
Compressor Skid Removal
Compressor Station Skid Extraction
Site Photography
Project
Photos

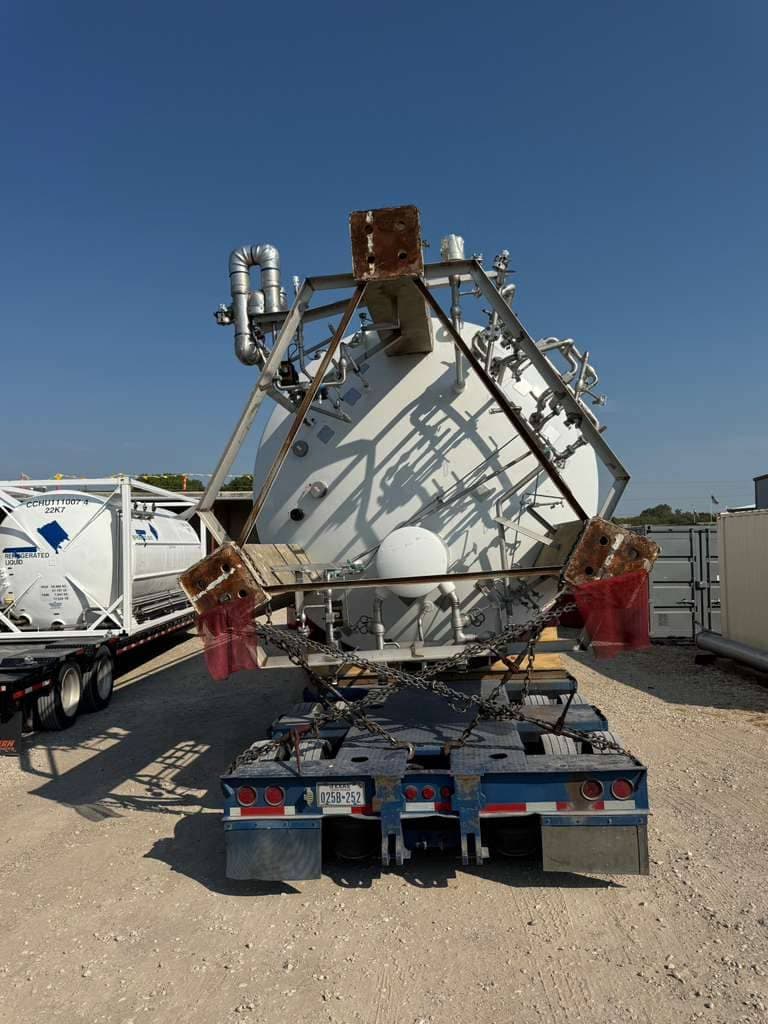

Crane Setup
100T lattice boom · outrigger pad placement

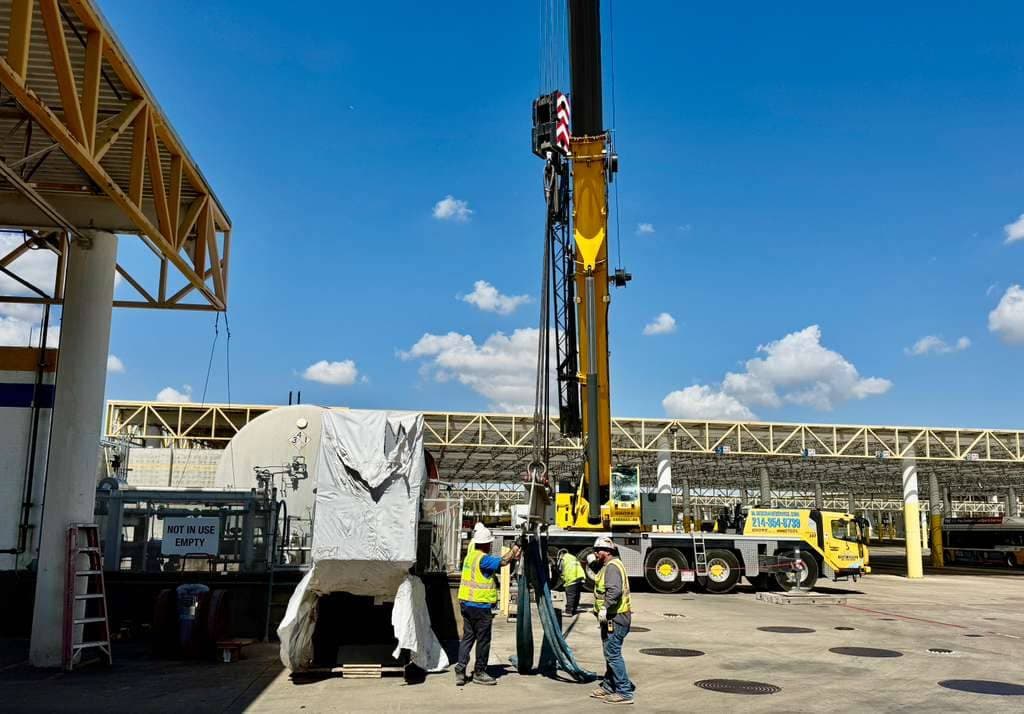

Skid Disconnect
Base frame unbolting · rigging attachment
Skid Lift
40-ton load clear of foundation
Engineering Notes
Technical
Breakdown
CRITICAL LIFT
Restricted-Site Crane Plan
Critical lift plan engineered for the confined yard with reduced outrigger spread. Lifting analysis performed at 85% of rated capacity at specified radius. Ground-bearing pressure calculated and timber cribbing designed for soft-ground sections.
NFPA 70E
Electrical Safety Program
Arc flash hazard assessment performed on all electrical panels connected to the skid. Proper PPE level determined from incident energy analysis. All panels locked out and tagged prior to mechanical skid disconnection.
BASE FRAME
Skid Unbolting Sequence
Structural engineer-approved sequence for base frame unbolting to prevent progressive load transfer to remaining anchor bolts. Load cells monitored during unbolting to detect unexpected load paths.
DOT MANIFEST
Compressor Transport
Compressor skid classified and manifested under applicable DOT hazmat regulations for residual hydrocarbon content. Transport vehicle placarded and driver certified before departure from facility.
