Cold-Cutting Operation
Project Brief
Project
Details
Scope
Cold-Cut Vessel Segmentation
Location
Refinery Decommission — Gulf Coast
Equipment Type
Diamond Wire Saw System
Key Challenge
Eliminating all ignition sources in a hydrocarbon-contaminated environment
Field Documentation
Cold-Cutting Operation
Cold-Cut Vessel Segmentation
Site Photography
Project
Photos
Wire Saw Setup
Diamond wire rigging · track install

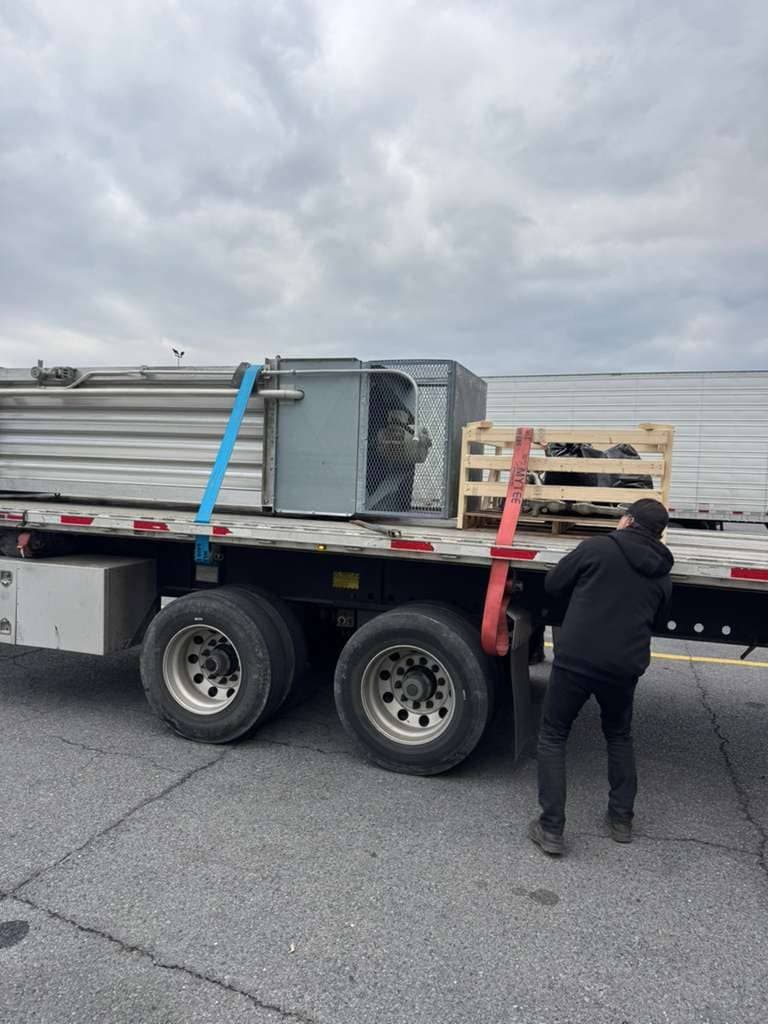

Active Cutting
Zero-spark segmentation in progress

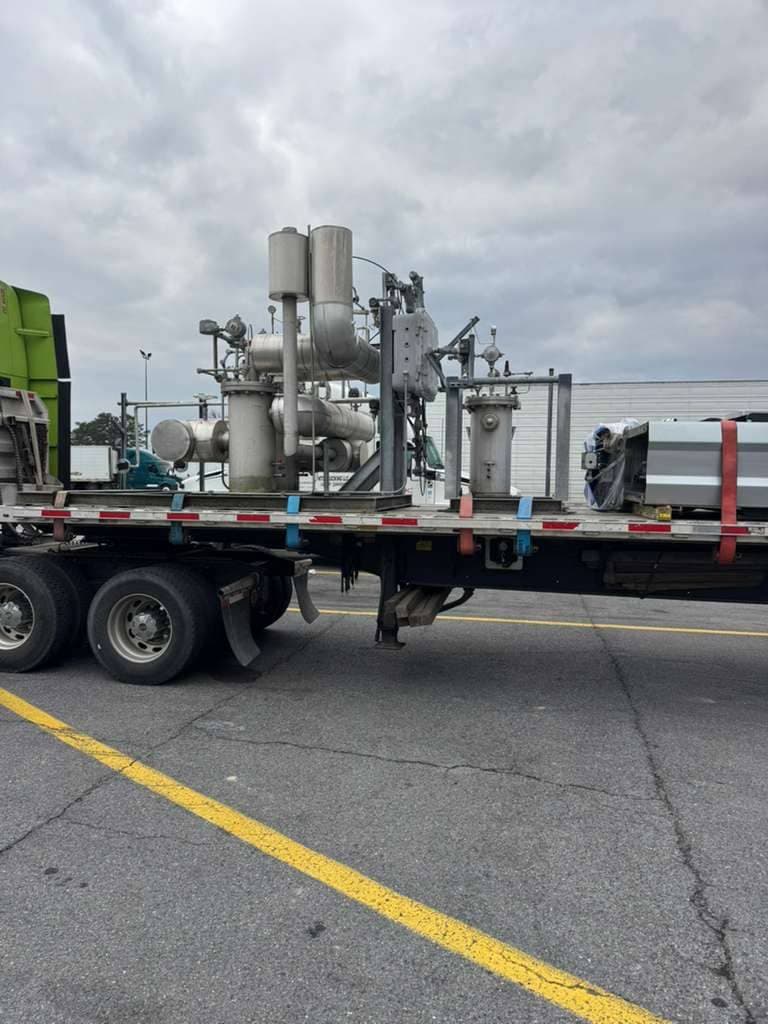

Segment Removal
Individual section rigging for haul
Site Monitoring
Continuous boundary LEL detection
Engineering Notes
Technical
Breakdown
ZERO SPARK
Cold-Cut Mandate
Absolute prohibition on any heat-generating tool — grinders, torches, friction saws, or plasma cutters — within the work boundary. Only diamond wire, hydraulic shears, and nibbler technology approved for metal removal.
DIAMOND WIRE
Wire Saw System
Diamond wire saw operates via hydraulic drive with no electrical components within the cutting zone. Wire loop tension and feed rate calibrated to vessel wall thickness to prevent frictional heating above 40°C surface temperature.
LEL BOUNDARY
10-Meter Exclusion Zone
Four-point LEL monitoring grid established at 10-meter radius from cutting zone. Any reading above 5% LEL triggers immediate work stoppage, tool withdrawal, and ventilation assessment.
HAZWOPER
Emergency Standby
Level B PPE-equipped HAZWOPER responders on standby for the duration of all segmentation operations. Medical surveillance and decontamination station established at the exclusion zone perimeter.
